Description
Features
DIMENSIONS
3D Modules
- Coated with sealing mastic
- Provides insulation
- UV resistant
- Shrink ratio: 2:1 – 3:1
- Minimum full recovery temperature: 130°C
- Standard color: Black

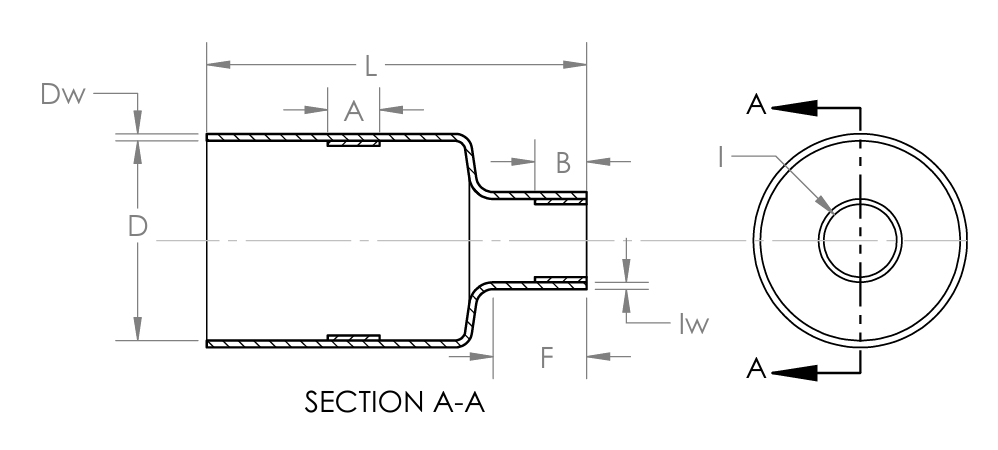

| Type | Supplied (mm) ±10% | D (mm) | l (mm) | Recovered length (mm) ±10% | Recovered wall (mm) ±20% | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | l* | f* | a* (Min.) | b* (Max.) | a* (Min.) | b* (Max.) | L | F | Dw | Iw |
| NCFT 100 (45/15-15/5) | 110 | 45 | 45 | 15 | 15 | 5 | 130 | 45 | 2.8 | 2.8 |
| NCFT 110 (85/42-15/5) | 110 | 45 | 85 | 42 | 15 | 5 | 130 | 45 | 2.8 | 2.8 |
| NCFT 120 (60/30-45/10) | 125 | 55 | 60 | 30 | 45 | 10 | 135 | 55 | 2.6 | 4.4 |
l = The length of L as supplied
f = The length of F as supplied
a* = Inner diameter as supplied
b* = Inner diameter after fully recovered
