- Available with or without spiral adhesive coating
- UV resistant
- Insulating and conductive types available
- Shrink ratio: 3:1
- Minimum full recovery temperature: 120°C
- Standard color: Black
Cable end cap-NSEC

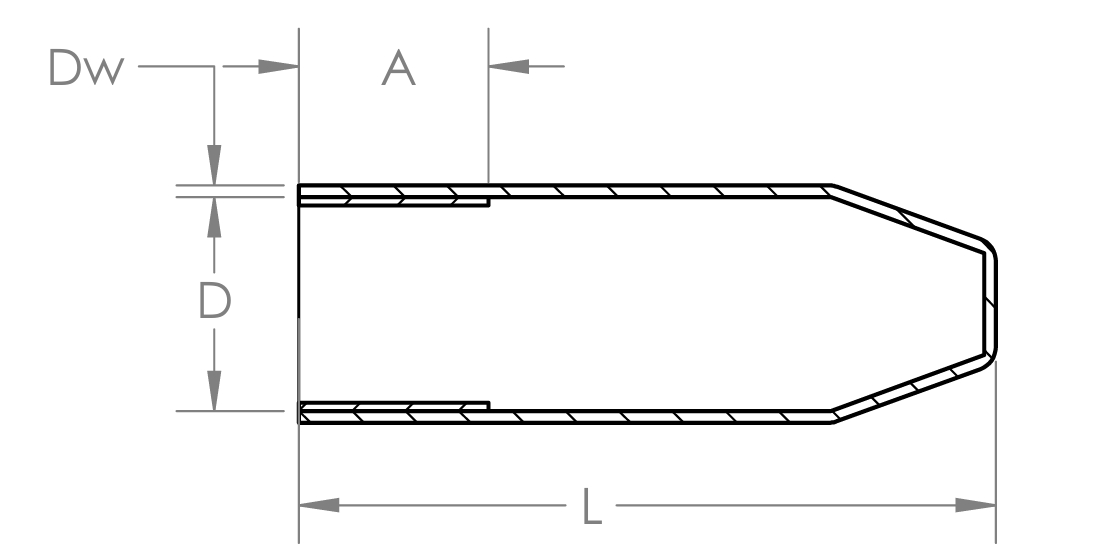

| Type | Supplied (mm) | Recovered (mm) | ||||
|---|---|---|---|---|---|---|
| (mm) | L* (±10%) | D* (Min.) | A* (±10%) | d* (Min.) | l* (±10%) | D* (Min.) |
| NSEC 105 12/4 | 38 | 12 | 15 | 4 | 40 | 2.6 |
| NSEC 115 20/6 | 65 | 20 | 25 | 6 | 55 | 2.5 |
| NSEC 200 200/90 | 170 | 200 | 70 | 90 | 145 | 4.5 |
L* = Length of end cap supplied
D* = Inner diameter supplied
A* = Length of adhesive after fully recovered
d* = Inner diameter after fully recovered
l* = Length of end cap after fully recovered
