- Triple-layer construction: semi-conductive, insulating, and elastomer layers
- Co-extruded triple layer design
- Extra heavy wall insulation layer
- Shrink ratio: 3:1
- Minimum full recovery temperature: 130°C
- Standard colors: Black / Red / Red
- Suitable for applications up to 42 kV
| Size (mm) | Supplied (mm) | Recovered (mm) | Standard Length (m) | |
|---|---|---|---|---|
| D* (Min.) | d* (Max.) | w (Min.) | ||
| 36/12 | 36 | 12 | 7.3 | 1.0-1.22 |
| 50/18 | 50 | 18 | 7.3 | 1.0-1.22 |
| 120/50 | 120 | 50 | 7.3 | 1.0-1.22 |

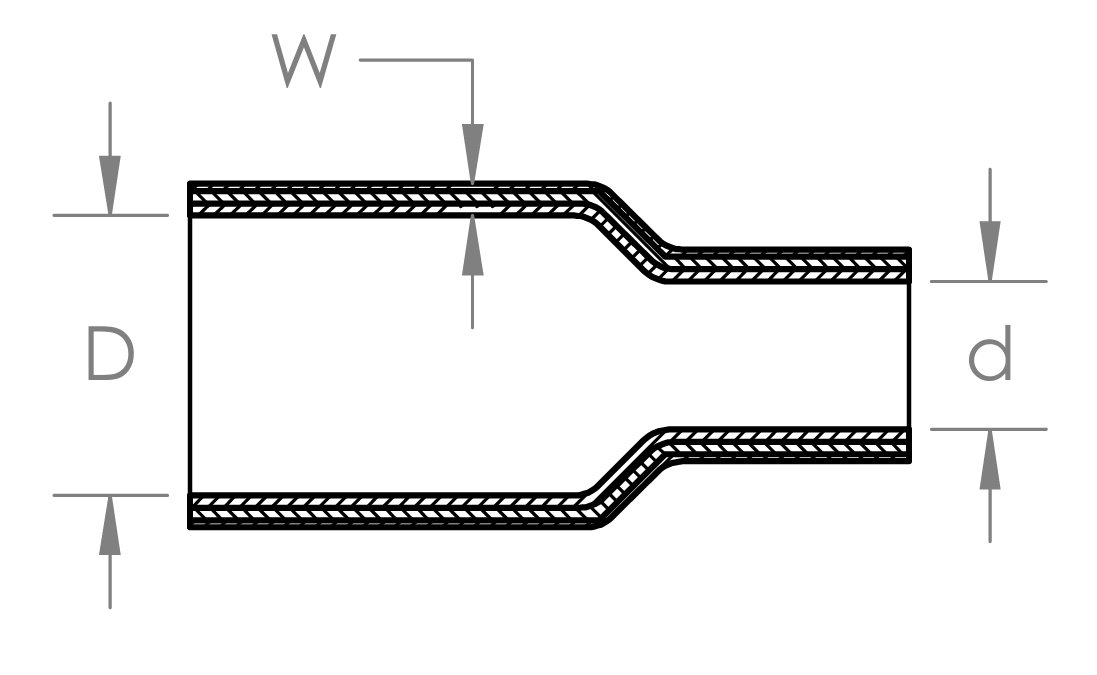

D* = Inner diameter as supplied
d* = Inner diameter after fully recovered
w* = Outer Layer Wall thickness after fully recovered
