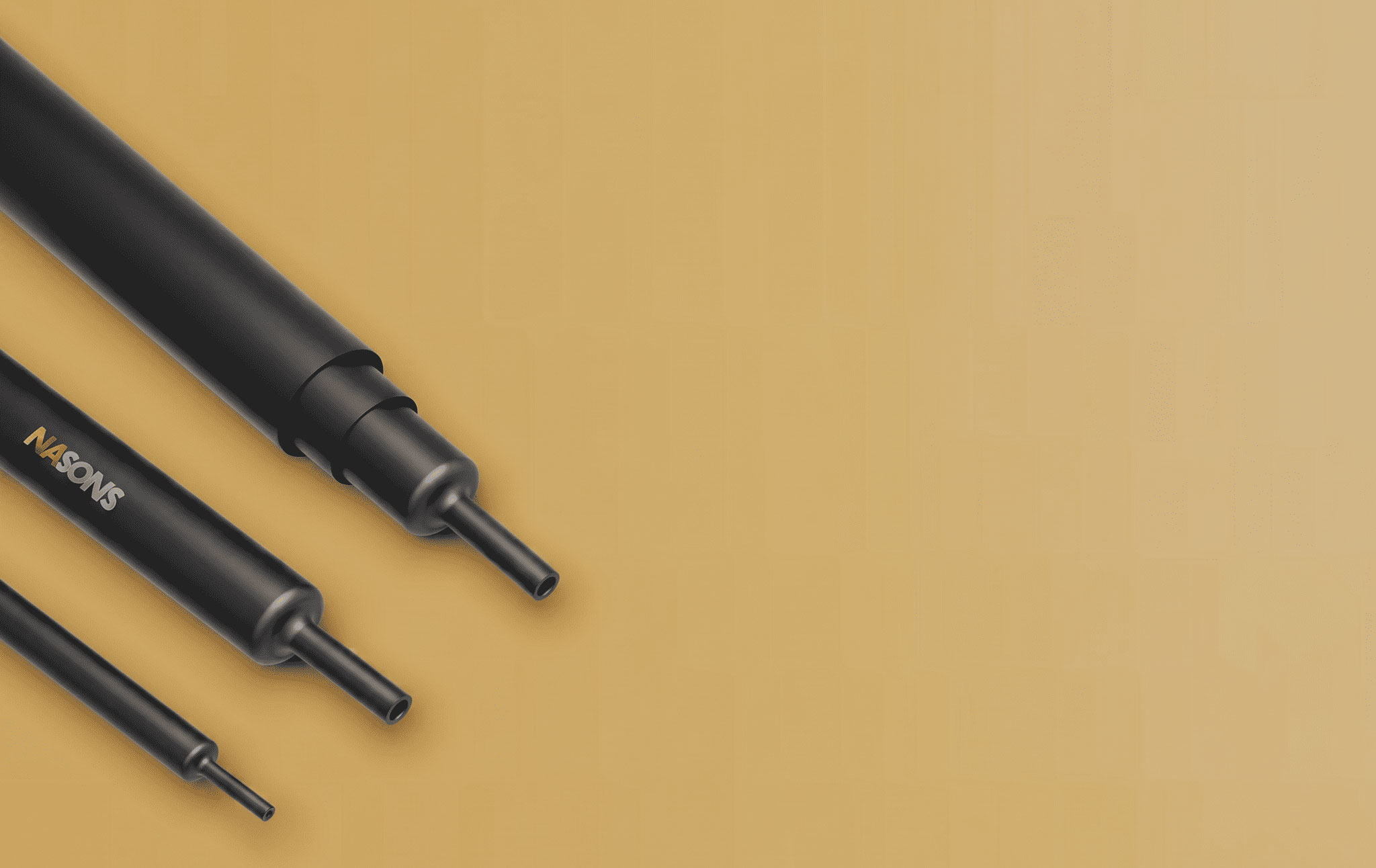

- Dual-wall tubing with hot melt adhesive lining (NRA2)
- Medium & heavy wall construction
- Shrink ratio: 3:1
- Semi-rigid and flame-retardant
- UV resistant
- Supplied in cut pieces up to 1.5 meters in length
- Minimum full recovery temperature: 120°C
- Standard color: Black
NRA2 Medium wall tubing with hot melting adhesive
| Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | ||
|---|---|---|---|---|---|---|---|---|---|
| D* (Min.) | d* (Max.) | w* (Min.) | D* (Min.) | d* (Max.) | w* (Min.) | ||||
| 8/2 | 8 | 2 | 1.8 | 1.0-1.5 | 95/25 | 95 | 25 | 3.6 | 1.0-1.5 |
| 12/3 | 12 | 3 | 1.8 | 1.0-1.5 | 115/34 | 115 | 34 | 3.5 | 1.0-1.5 |
| 16/5 | 16 | 5 | 2.1 | 1.0-1.5 | 140/42 | 140 | 42 | 3.3 | 1.0-1.5 |
NR2 Medium wall tubing without hot melting adhesive
| Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | ||
|---|---|---|---|---|---|---|---|---|---|
| D* (Min.) | d* (Max.) | w* (Min.) | D* (Min.) | d* (Max.) | w* (Min.) | ||||
| 12/3 | 12 | 3 | 1.8 | 30m/spool or 1.0-1.5m | 95/25 | 95 | 25 | 3.6 | 15m/spool or 1.0-1.5m |
| 16/5 | 16 | 5 | 2.1 | 30m/spool or 1.0-1.5m | 115/34 | 115 | 34 | 3.5 | 15m/spool or 1.0-1.5m |
| 22/6 | 22 | 6 | 2.4 | 30m/spool or 1.0-1.5m | 140/42 | 140 | 42 | 3.3 | 1.0-1.5m |
NOTE : The remaining technical specifications can be found in the datasheet.
D* = Inner diameter as supplied
d* = Inner diameter after fully recovered
w* = Outer layer wall thickness after fully recovered
