- Dual-wall construction with hot melt adhesive inner liner (NRA3)
- Semi-rigid, shrink ratio 3:1
- Heavy wall construction for high durability
- UV resistant and flammable
- Minimum full recovery temperature: 120°C
- Supplied in cut pieces up to 1.5 meters in length
- Standard color: Black (BK)

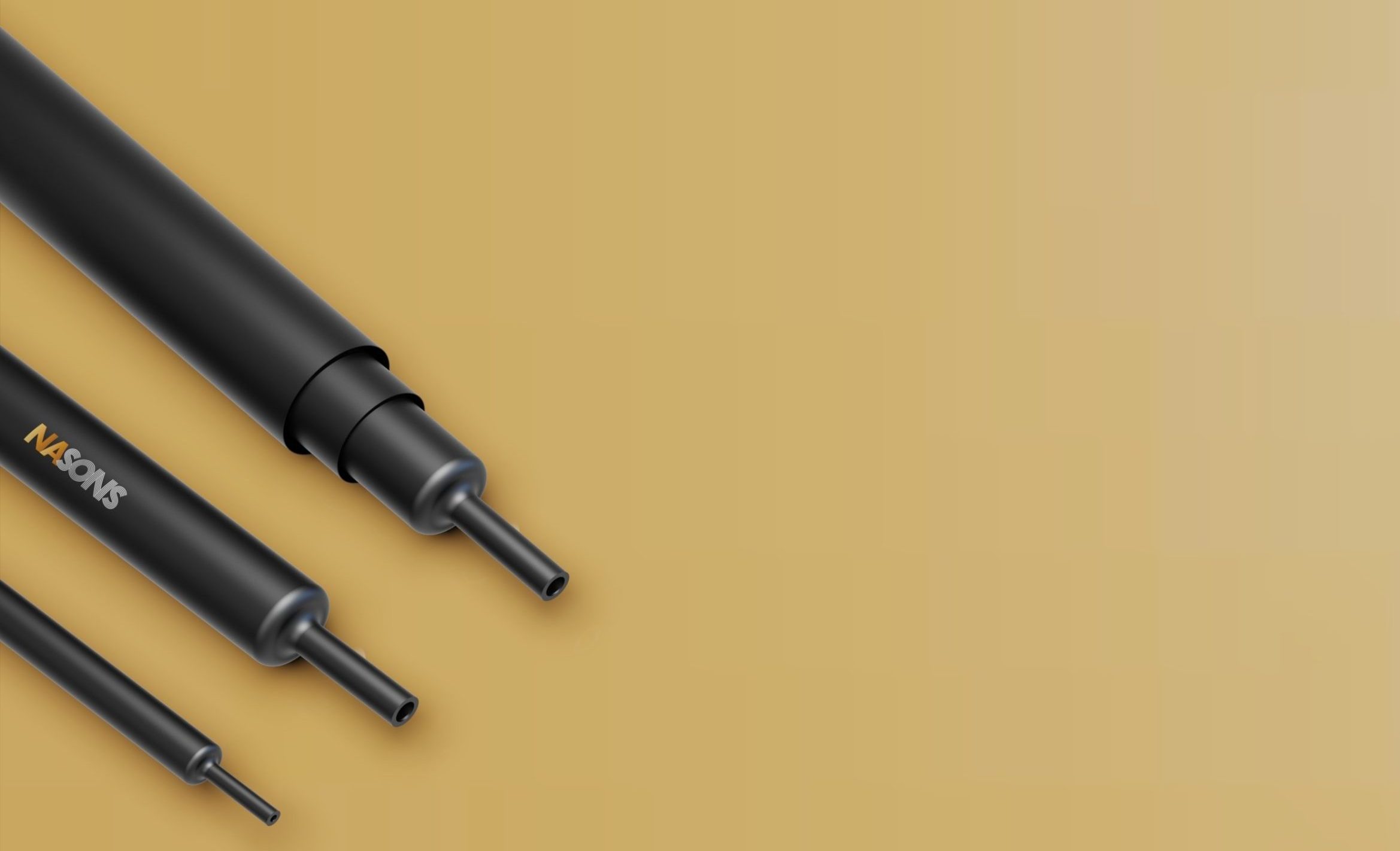

NRA3 Heavy wall tubing with hot melting adhesive
| Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | ||
|---|---|---|---|---|---|---|---|---|---|
| D* (Min.) | d* (Max.) | w* (Min.) | D* (Min.) | d* (Max.) | w* (Min.) | ||||
| 9/3 | 9 | 2 | 2.0 | 1.0-1.5 | 105/25 | 105 | 25 | 4.5 | 1.0-1.5 |
| 15/4 | 15 | 4 | 2.4 | 1.0-1.5 | 115/34 | 115 | 34 | 4.2 | 1.0-1.5 |
| 22/6 | 22 | 6 | 2.7 | 1.0-1.5 | 130/36 | 130 | 36 | 4.2 | 1.0-1.5 |
NR3 Heavy wall tubing without hot melting adhesive
| Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | Size (mm) | Supplied (mm) | Recovered (mm) | Standard length (m) | ||
|---|---|---|---|---|---|---|---|---|---|
| D* (Min.) | d* (Max.) | w* (Min.) | D* (Min.) | d* (Max.) | w* (Min.) | ||||
| 9/3 | 9 | 3 | 2.0 | 1.0-1.5 | 95/29 | 95 | 25 | 4.5 | 1.0-1.5 |
| 15/4 | 15 | 4 | 2.4 | 1.0-1.5 | 115/34 | 115 | 34 | 4.2 | 1.0-1.5 |
| 22/6 | 22 | 6 | 2.7 | 1.0-1.5 | 130/36 | 130 | 36 | 4.2 | 1.0-1.5 |
D* = Inner diameter as supplied
d* = Inner diameter after fully recovered
w* = Outer layer wall thickness after fully recovered
