- Quick and easy to install
- Coated with thermo paint for added protection
- Provides reliable mechanical stress protection
- Sleeves and channels can be trimmed for shorter applications
- Hot melt adhesive ensures a durable, moisture-resistant seal
- Fits a wide range of cable sizes
- Suitable for insulation repair on low voltage cables up to 1000 V
- Standard color: Black

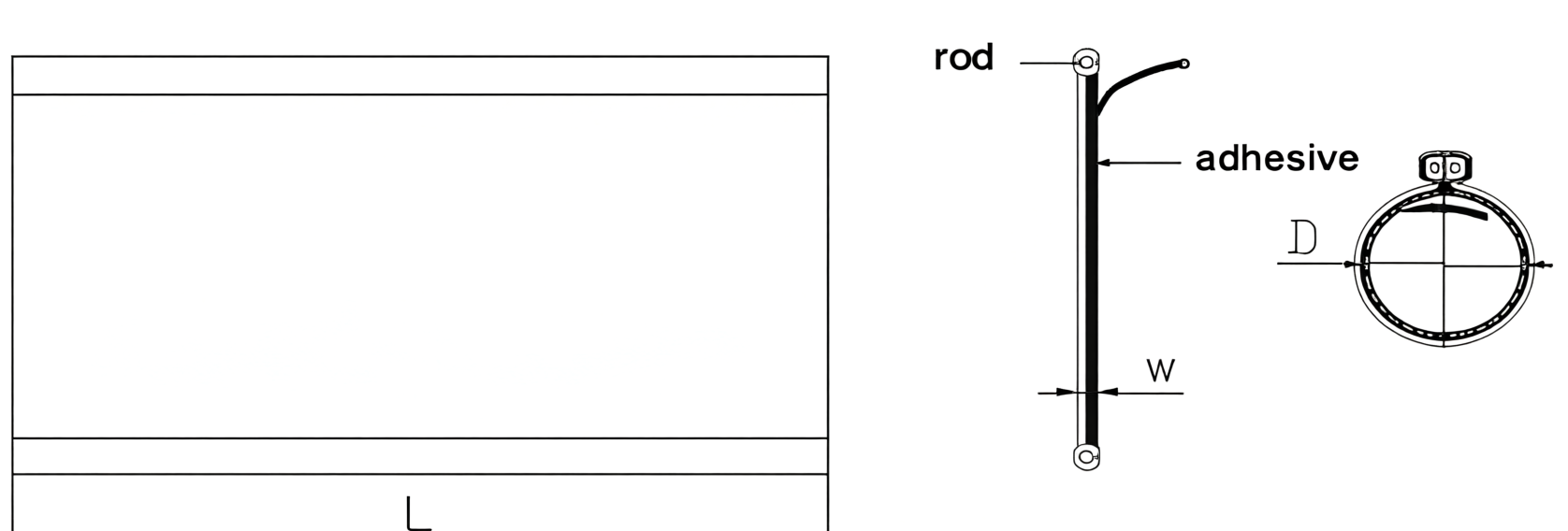

| Size (mm) | Supplied (mm) | Recovered (mm) | Standard Length | ||
|---|---|---|---|---|---|
| D* (mm) | W* (Min.) | d* (Max.) | w* (Min.) | L(mm) | |
| 36/10 | 38 | 0.7 | 10 | 3.2 | 500, 750, 1000, 1500 |
| 55/13 | 57 | 0.7 | 13 | 3.2 | 500, 750, 1000, 1500 |
| 85/20 | 85 | 0.7 | 20 | 3.2 | 500, 750, 1000, 1500 |
NOTE : The remaining technical specifications can be found in the datasheet.
D* = Diameter as supplied
d* = Diameter after recovered
W* = Thickness of sleeve as supplied
w* = Thickness of sleeve after fully recovered
